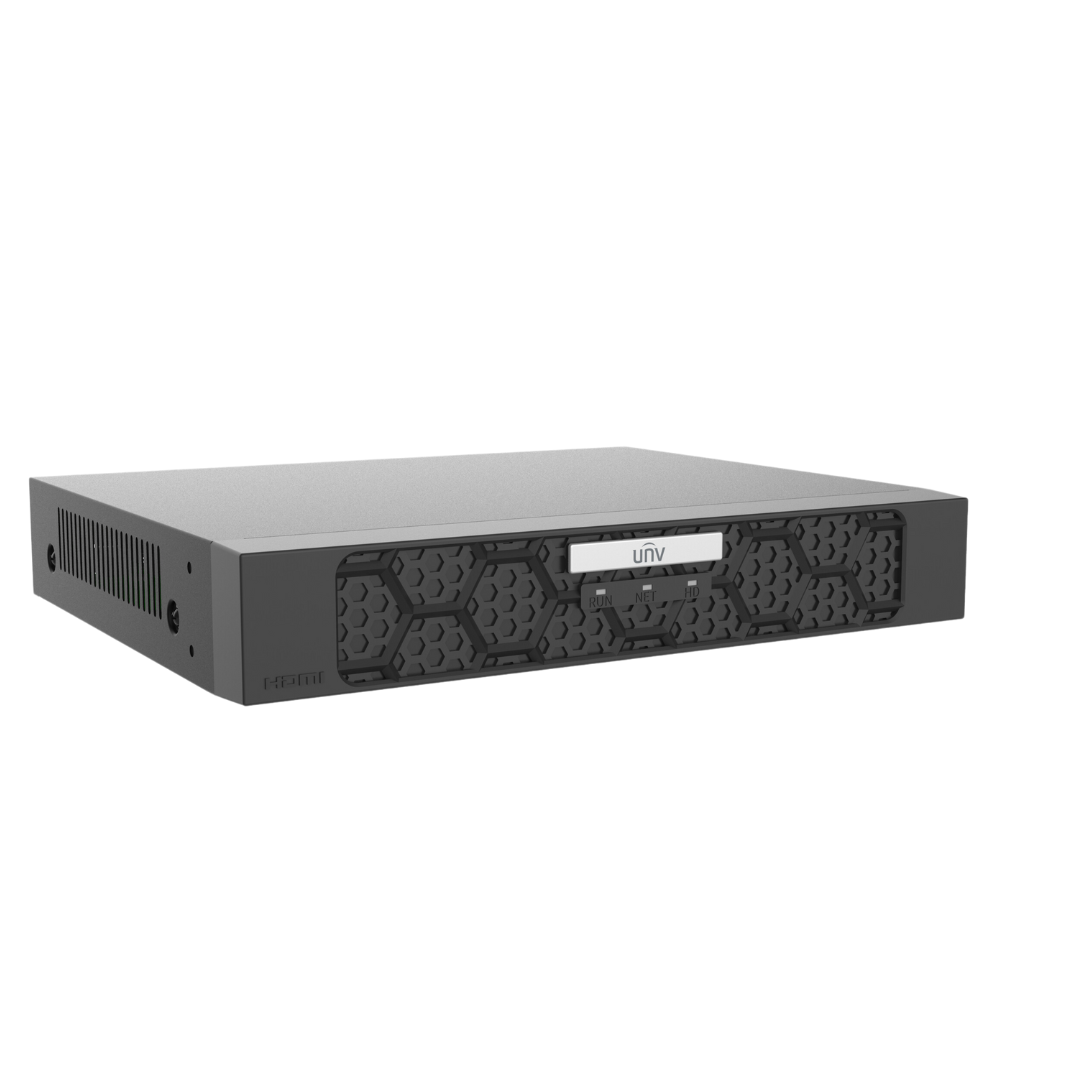

NVR502-B-P Series 2 HDDs 8-ch 8 PoE 1U Network Video Recorder

1 3

NVR502-B-P Series 2 HDDs 8-ch 8 PoE 1U Network Video Recorder

NVR502-B-P Series 2 HDDs 8-ch 8 PoE 1U Network Video Recorder

  • Support Ultra 265/H.265/H.264 video formats
  • 8/16/32-channel input
  • Plug & Play with 8/16 independent PoE network interfaces
  • Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
  • Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
  • VGA and HDMI independent output
  • Up to 16 Megapixels resolution recording
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
$640.00
$640.00
Liquid error (snippets/price line 89): divided by 0% OFF
In stock
View full details
product-img
NVR502-B-P Series 2 HDDs 8-ch 8 PoE 1U Network Video Recorder
$640.00
$640.00
Wishlist
Compare
Close
  • Support Ultra 265/H.265/H.264 video formats
  • 8/16/32-channel input
  • Plug & Play with 8/16 independent PoE network interfaces
  • Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
  • Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
  • VGA and HDMI independent output
  • Up to 16 Megapixels resolution recording
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
 NVR502-08B-P8NVR502-16B-P16NVR502-32B-P16
Decoding
Decoding FormatUltra 265, H.265, H.264
Decoding CapabilityUltra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30
H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30		Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30
H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 16 x 720P@30		Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25
H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1
Decoding Capability DescriptionThe resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width, For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page.
Audio CompressionG.711A, G.711U
Network
Incoming Bandwidth320 Mbps
Outgoing Bandwidth160 Mbps
Remote Users128
ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4
Browser(Plugin)IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/Audio Input
IP Video Input8-ch16-ch32-ch
RCA Audio Input1-ch
Video/Audio Output
HDMI Output4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output1-ch
Liveview Display1/4/6/8/91/4/6/8/9/161/4/6/8/9/16/25/32
Corridor Mode Screen3/4/5/7/93/4/5/7/9/10/12/163/4/5/7/9/10/12/16/32
Two-way Audio
Two-way Audio1-ch, RCA (Using the audio input and output)
Snapshot
FTP/Schedule/Event Snapshot4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)
Recording
Recording Resolution16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local8-ch16-ch16-ch
Smart
VCA Detection by IPCFace Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
VCA SearchMotor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
Smart by IPCAll channels (up to 8 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
Alarm
General AlarmDefocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert AlarmIP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA2 SATA Interfaces
CapacityUp to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Disk GroupSupport
Redundant StorageSupport
Disk Array TypeRAID 1
External Interface
Network Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USBFront panel: 1 × USB2.0, Rear panel: 1 × USB3.0
RS4851
RS232N/A
Alarm In8-ch
Alarm Out2-ch
Power SupplyAC 100 to 240 V
Power SwitchSupport
PoE
PoE Interface8 RJ45 10 M/100 M self-adaptive Ethernet Interface16 RJ45 10 M/100 M self-adaptive Ethernet Interface16 RJ45 10 M/100 M self-adaptive Ethernet Interface
Max PowerMax 30 W for single port, Max 130 W in totalMax 30 W for single port, Max 240 W in totalMax 30 W for single port, Max 240 W in total
Supported StandardIEEE 802.3at, IEEE 802.3af
Working Environment
Working Temperature-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Working Humidity≤ 90% RH (non-condensing)
Power Consumption (without HDD)≤ 20W
Dimensions
Weight (without HDD)≤ 2.6Kg (5.73lb)
Dimensions380mm × 322mm × 53mm
(15.0"×12.7"×2.1")
Certification
CertificationCE; FCC; UL; RoHS; WEEE
CEEN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCCPart15 Subpart B
