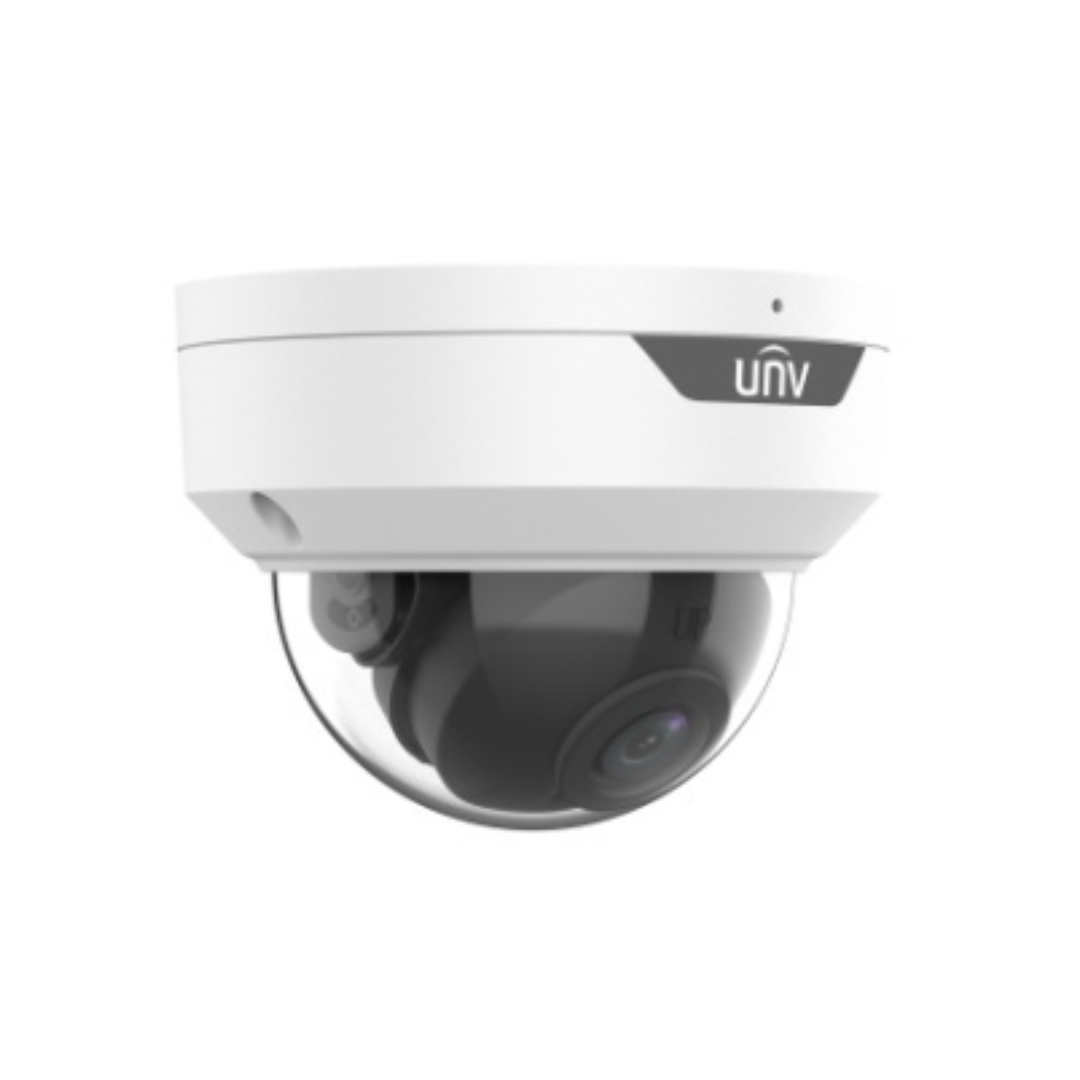

4MP Vandal-resistant Network IR Fixed Dome Camera

EC-D4F28M-V3 Camera Sensor 1/2.9", progressive scan, 4.0 megapixel, CMOS Minimum Illumination Colour: 0.01 lux (F2.0, AGC ON)  0 lux with IR Day/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s Adjustment angle Pan 8° to 360° Tilt: 0° to 68° Rotate: 10° to 360° S/N >52dB WDR 120dB Lens Lens Type 2.8mm @F2.0 Iris Fixed Field of View (H) 101.5° Field of View (V) 55.6° Field of View (D) 111.6° DORI DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 2.8 63.0 25.2 12.6 6.3 Illuminator IR Range Up to 30m (98ft) Wavelength 850nm IR On/Off Control Auto/Manual Video Video Compression Ultra 265, H.265, H.264, MJPEG H.264 code profile Baseline profile, Main profile, High profile Frame Rate Main Stream: 4MP (2560*1440), Max 20fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Video Bit Rate 128 Kbps~6144 kbps U-code Support OSD Up to 4 OSDs Privacy Mask Up to 4 areas ROI Up to 8 areas Video stream Dual streams Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital noise reduction 2D/3D DNR Smart IR Support Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise Dewarping N/A HLC Support BLC Support Defog Digital Defog Events Basic Detection Motion detection, Tampering alarm, Audio detection, Cross line and Intrusion General Function Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication Storage Edge Storage Micro SD, up to 128GB Network Storage ANR, NAS(NFS) Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP Compatible Integration ONVIF (Profile S, Profile G, Profile T), API , SDK User/Host Up to 32 users. 2 user levels: administrator and common user Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF Client EZStation EZView EZLive Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above Interface Audio I/O N/A Alarm I/O N/A Serial Port N/A Built-in Mic Support Built-in Speaker N/A WIFI N/A Network 1 * RJ45 10M/100M Base-TX Ethernet Video Output N/A Certification EMC CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) Safety CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) Protection IP67 (IEC 60529) IK10 (IEC 62262) General Power DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 4.0W Power Interface Ø 5.5mm coaxial power plug Dimensions (Ø x H) Φ109 x 83mm (Ø4.3” x 3.3”) Weight 0.36kg (0.79lb) Material Metal + Plastic Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Surge Protection 4KV Reset Button N/A
