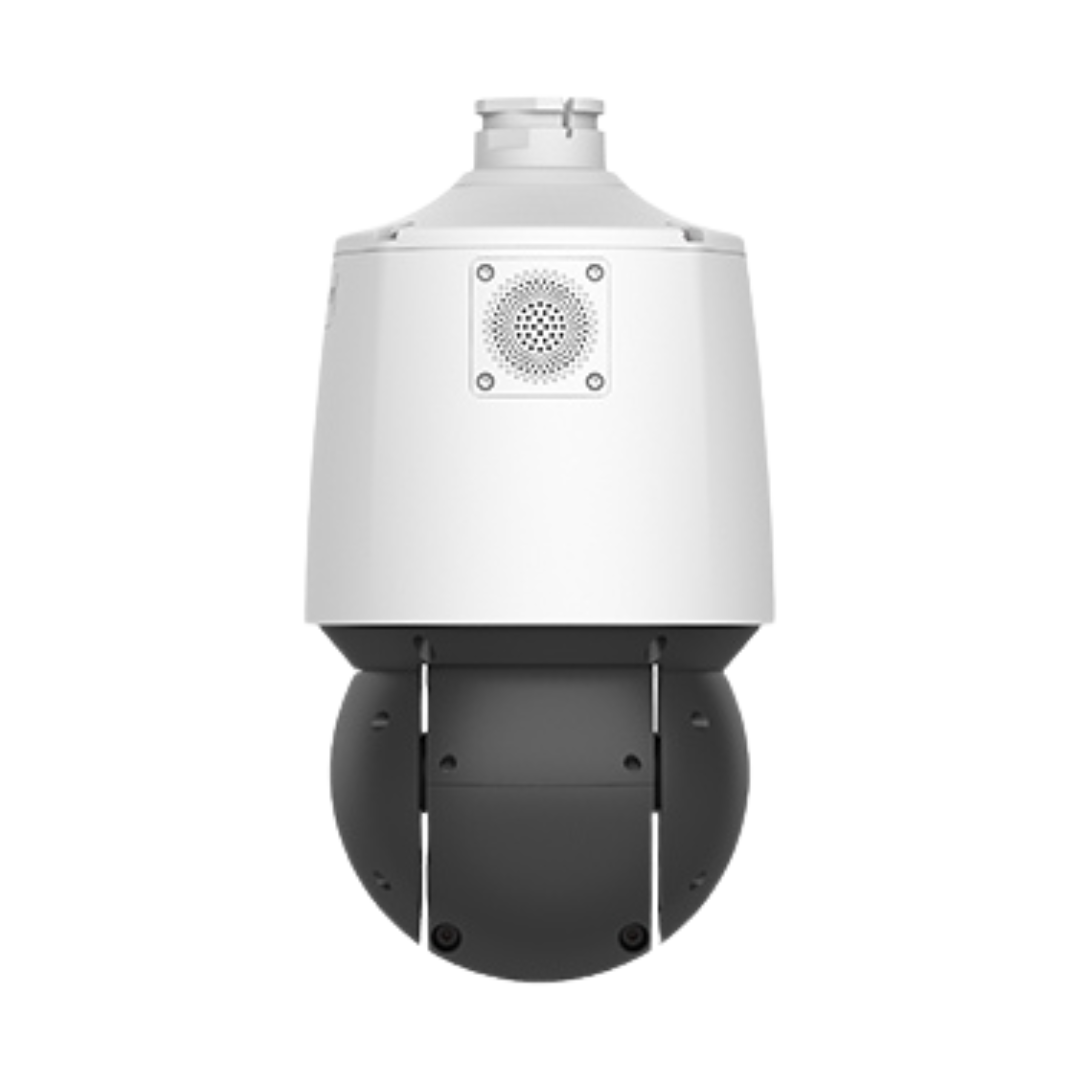

| IPC94144SFW-X25-F40C | ||||||
| Camera | Panorama | Detail | ||||
| Sensor | 1/1.8", 4MP, CMOS | 1/2.7", 4MP, CMOS | ||||
| Min. Illumination | Color:0.0005 lux (F1.0, AGC ON) 0 lux with warm light | Color:0.003 lux (F1.5, AGC ON) 0 lux with IR | ||||
| Day/Night | N/A | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| WDR | 120dB | |||||
| S/N | ＞56dB | |||||
| Lens | ||||||
| Lens type | 4mm@F1.0 | 4.8~120mm@F1.5, AF automatic focusing and motorized zoom lens | ||||
| Optical Zoom | N/A | 25X | ||||
| Iris | Fixed aperture; F1.0 | Auto; F1.5(W)~F3.8(T) | ||||
| Field of View (H) | 94.9° | 55.46° ~ 3.09° | ||||
| Field of View (V) | 51.5° | 32.94° ~ 1.73° | ||||
| Field of View (D) | 116.7° | 68.22° ~ 3.65° | ||||
| DORI | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 4 (Panorama) | 62.1 (203.6 ft) | 24.8 (81.5 ft) | 12.4 (40.7 ft) | 6.2 (20.4 ft) | ||
| 4.8 (Detail) | 123.8 (406.0 ft) | 49.5 (162.4 ft) | 24.8 (81.2 ft) | 12.4 (40.6 ft) | ||
| 120 (Detail) | 2475.0 (8120.1 ft) | 990.0 (3248.0 ft) | 495.0 (1624.0 ft) | 247.5 (812.0 ft) | ||
| Illuminator | ||||||
| IR Range | N/A | Up to 100m (328.1 ft) | ||||
| Warm Light Range | Up to 30m (98.4 ft) | N/A | ||||
| Wavelength | N/A | 850nm (IR) | ||||
| Light On/Off Control | Auto/Manual | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| Frame Rate | Main Stream: 4MP (2688*1520),Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; | Main Stream: 4MP (2688*1520),Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; | ||||
| Video Bit Rate | 128 Kbps ~ 16 Mbps | |||||
| U-code | Support | |||||
| ROI | Up to 8 areas | |||||
| Video stream | Triple streams | |||||
| OSD | Up to 8 OSDs | |||||
| Privacy Mask | Up to 4 areas per scene | 24 areas, up to 4 areas per scene | ||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180° | |||||
| HLC | Support | |||||
| BLC | Support | |||||
| Defog | Digital defog | |||||
| Events | ||||||
| Basic Detection | Motion detection, Audio detection, Tampering Alarm | |||||
| Auto Tracking | N/A | Support | ||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||
| Audio | ||||||
| Audio Compression | G.711U, G.711A | |||||
| Audio Bitrate | 64 Kbps | |||||
| Two-way Audio | Support | |||||
| Suppression | Support | |||||
| Sampling Rate | 8 kHz | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256 GB | |||||
| Network Storage | ANR | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user | |||||
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||
| Client | EZStation EZLive EZView | |||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||
| Pan & Tilt | ||||||
| Pan Range | N/A | 360° | ||||
| Pan Speed | N/A | 0.1°/s ~ 80°/s | ||||
| Preset speed: N/A | Preset speed: 80°/s | |||||
| Tilt Range | 18° ± 5° | -15° ~ 90° | ||||
| Tilt Speed | N/A | 0.1°/s ~ 80°/s | ||||
| Preset speed: N/A | Preset speed: 80°/s | |||||
| Number of Presets | 1024 | |||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||
| Route Patrol | 16 patrols, up to 32 actions for each patrol | |||||
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol | |||||
| Patrol Stay Time | 15s~1800s | |||||
| Preset Image Freeze | N/A | |||||
| Home Position | Support | |||||
| Interface | ||||||
| Audio I/O | 1/1 | |||||
| Alarm I/O | 2/1 | |||||
| Serial Port | 1 RS485 | |||||
| Built-in Mic | N/A | |||||
| Built-in Speaker | Support | |||||
| Wi-Fi | N/A | |||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||
| Video Output | N/A | |||||
| Certification | ||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863) | |||||
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||
| General | ||||||
| Power | DC12V (±25%), PoE+(IEEE 802.3at) | |||||
| Power consumption: MAX 24W | ||||||
| Power Interface | Ø 5.5mm coaxial power plug | |||||
| Dimensions (Ø x H) | Φ163 x 304mm (Φ6.4” x 12.0”) | |||||
| Weight | 2.27kg (5.00lb) | |||||
| Working Environment | -40℃ ~ +65℃(-40°F ~ +149°F)，Humidity: ≤95% RH (non-condensing) | |||||
| Storage Environment | -40℃ ~ +70℃(-40°F ~ +158°F)，Humidity: ≤95% RH (non-condensing) | |||||
| Surge protection | 6KV | |||||
| Reset button | Support | |||||
