Uniview

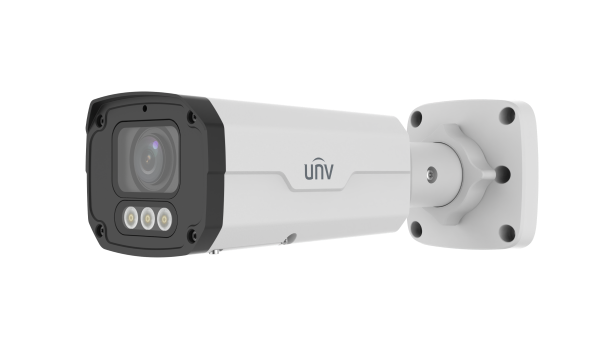

8MP Dual-Light VF Bullet Camera with Smart Intrusion Prevention | IPC2328SB-ADZKM-DL-I1
SKU:IPC2328SB-ADZKM-DL-I1
- ⢠High quality image with 8MP Progressive CMOS sensor. ⢠Motorized varifocal lens with intelligent Dual-Light technology. ⢠Supports Ultra 265, H.265, H.264, and MJPEG compression. ⢠ColorHunter delivers vivid 24/7 full-color surveillance. ⢠AI-powered perimeter protection with intelligent human and vehicle classification. ⢠Built-in microphone and speaker for two-way audio. ⢠Smart IR and warm white light illumination. ⢠Supports MicroSD cards up to 512GB. ⢠IP67 and IK10 protection.
5-Year Warranty
Industry-leading coverage
Free Shipping
On orders over $99
NDAA Compliant
Approved products
30-Day Returns
Hassle-free returns
Regular price
$1,309.00 USD
Regular price
Sale price
$1,309.00 USD
Couldn't load pickup availability
Secure Checkout Guaranteed
256-bit SSL encrypted
| Â | IPC2328SB-ADZKM-DL-I1 | |||||||
| Camera | ||||||||
| Max Resolution | 8 MP | |||||||
| Sensor | 1/2.7" CMOS | |||||||
| Min. Illumination | Color: 0.002 Lux (F1.4, AGC ON), 0 Lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° | |||||||
| WDR | 120 dB | |||||||
| S/N | > 52 dB | |||||||
| Lens | ||||||||
| Focal Length | 2.8 to 12 mm | |||||||
| Iris | F1.4 | |||||||
| Field of View (H) | 111.5° to 34.4° | |||||||
| Field of View (V) | 58.7° to 19.2° | |||||||
| Field of View (D) | 132.5° to 39.4° | |||||||
| Lens Type | Motorized | |||||||
| Iris Type | Fixed | |||||||
| DORI | ||||||||
| DORI Distance (Lens) | 2.8 to 12 mm | |||||||
| DORI Distance (Detect) | 81.0 m to 405.0 m (265.7 ft. to 1328.7 ft) | |||||||
| DORI Distance (Observe) | 32.4 m to 162.0 m (106.3 ft. to 531.5 ft) | |||||||
| DORI Distance (Recognize) | 16.2 m to 81.0 m (53.1 ft. to 265.7 ft) | |||||||
| DORI Distance (Identify) | 8.1 m to 40.5 m (26.6 ft. to 132.9 ft) | |||||||
| Illuminator | ||||||||
| Illumination Distance (IR) | 60 m (196.9 ft) | |||||||
| Illumination Distance (Warm Light) | 60 m (196.9 ft) | |||||||
| Light On/Off Control | Auto/Manual | |||||||
| Wavelength | 850 nm | |||||||
| Supplemental Light | Dual light | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
| Frame Rate | Main Stream: 8 MP (3840 Ã 2160), max. 25 fps; 5 MP (3072 Ã 1728), max. 30 fps; 4 MP (2560 Ã 1440), max. 30 fps; 1080P (1920 Ã 1080), max. 30 fps; 720P (1280 Ã 720), max. 30 fps; Sub Stream: 1080P (1920 Ã 1080), max. 30 fps; 720P (1280 Ã 720), max. 30 fps; D1 (720 Ã 576), max. 30 fps; 640 Ã 360, max. 30 fps; 2CIF (704 Ã 288), max. 30 fps; CIF (352 Ã 288), max. 30 fps; Third Stream: D1 (720 Ã 576), max. 30 fps; 640 Ã 360, max. 30 fps; 2CIF (704 Ã 288), max. 30 fps; CIF (352 Ã 288), max. 30 fps | |||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| U-code | Support | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Support | |||||||
| Video Stream | Triple streams | |||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance | |||||||
| Smart IR | Support | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Dewarping | Support | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Digital defog | |||||||
| Intelligent | ||||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
| Statistical Analysis | N/A | |||||||
| People Counting | Support people flow counting and crowd density detection | |||||||
| Events | ||||||||
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection | |||||||
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A, AAC-LC | |||||||
| Audio Bitrate | G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz | |||||||
| Storage | ||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Network | ||||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SSL/TLS, 802.1x, SNMP, QoS, HTTPS, SMTP, PPPoE | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Security | Password protection, Strong Password, HTTPS encryption, Export operation logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, DTLS 1.2 | |||||||
| Client | EZStation, APP | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | |||||||
| Alarm I/O | 1/1 | |||||||
| Serial Port | N/A | |||||||
| Built-in Mic | Support | |||||||
| Built-in Speaker | N/A | |||||||
| WIFI | N/A | |||||||
| Network | 1 Ã RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Video Output | N/A | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) FCC (FCC 47 CFR part15 B) | |||||||
| Safety | CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |||||||
| Environment | CE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) | |||||||
| General | ||||||||
| Power | DC 12 V±25%, PoE (IEEE 802.3af) | |||||||
| Power Consumption | Max. 8.0 W | |||||||
| Power Interface | Ã5.5 mm coaxial power plug | |||||||
| Dimensions | 245 mm à 85 mm à 86 mm (9.7" à 3.4" à 3.4") (L à W à H) | |||||||
| Weight | 0.93 kg (2.05 lb) | |||||||
| Working Environment | -30 â to 60 â (-22 â to 140 â), Humidity: ⤠95% RH (non-condensing) | |||||||
| Storage Environment | -30 â to 60 â (-22 â to 140 â), Humidity: ⤠95% RH (non-condensing) | |||||||
| Surge Protection | 4 KV | |||||||
| Reset Button | Support | |||||||
| Material | Metal | |||||||
| Web Client Language | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese | |||||||
