Uniview

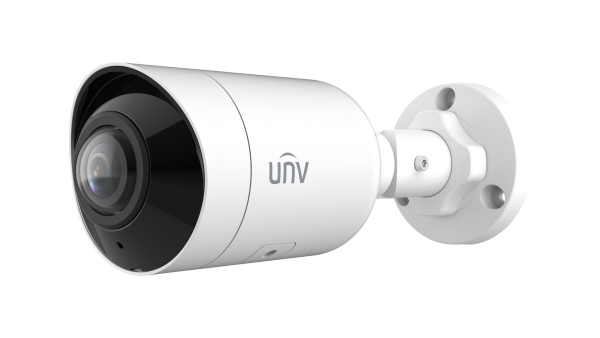

8MP OmniView 180° Bullet Camera with Smart Intrusion Prevention | IPC2108SB-ADF16KM-I0

IPC2108SB-ADF16KM-I0

  • • High quality image with 8MP, 1/2.7" CMOS sensor. • 1.68mm ultra-wide lens provides a 180° horizontal field of view. • Supports Ultra 265, H.265, H.264, and MJPEG compression. • Smart intrusion prevention with intelligent human and vehicle classification. • 120dB True WDR technology for clear images in challenging lighting. • Built-in microphone for synchronized audio recording. • Smart IR illumination up to 20m (66ft). • Supports MicroSD cards up to 512GB. • IP67 weatherproof protection.
🛡️

5-Year Warranty

Industry-leading coverage

🚚

Free Shipping

On orders over $99

🛡️

NDAA Compliant

Approved products

↩

30-Day Returns

Hassle-free returns

$939.00 USD
$939.00 USD
Sale Sold out
🛒 Request Quote
⇄ Compare ♡ Wishlist
🗂 Get Free System Design 🎧 Talk to an Expert
🔒

Secure Checkout Guaranteed

256-bit SSL encrypted

Visa Mastercard American Express Discover Shop Pay Apple Pay Google Pay
  IPC2108SB-ADF16KM-I0
Camera
Max Resolution 8 MP
Sensor 1/2.7" CMOS
Min. Illumination Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
WDR 120 dB
S/N >52 dB
Lens
Focal Length 1.68 mm
Iris F2.0
Field of View (H) 180°
Field of View (V) 100°
Field of View (D) 180°
Lens Type Fixed
Iris Type Fixed
DORI
DORI Distance (Lens) 1.68 mm
DORI Distance (Detect) 37.8 m (124.0 ft)
DORI Distance (Observe) 15.1 m (49.6 ft)
DORI Distance (Recognize) 7.6 m (24.9 ft)
DORI Distance (Identify) 3.8 m (12.5 ft)
Illuminator
Illumination Distance (IR) 20 m (65.6 ft)
Wavelength 850 nm
IR On/Off Control Auto/Manual
Supplemental Light IR
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 8 MP (3840 × 2160), max. 30 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps;
Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps;
Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate 128 Kbps to 16 Mbps
U-code Support
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Support
Video Stream Triple streams
Auto Scene Match (ASM) Support (only WDR)
White Balance Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Smart IR Support
Digital Noise Reduction 2D/3D DNR
Flip Normal, Flip vertical, Flip horizontal, 180°
Dewarping Support
HLC Support
BLC Support
Image Stabilization N/A
Low Illumination Characteristics Low-light
Defog Digital defog
Intelligent
Smart Intrusion Prevention Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Attribute Collection SIP with color retrieval
Events
Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General Function Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio N/A
Suppression Support
Sampling Rate 8 kHz
Storage
Edge Storage MicroSD, up to 512 GB
Network Storage ANR, NAS (NFS)
Network
Protocols IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M)
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client EZStation, APP
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output N/A
Certification
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B)
Safety CE LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection IP67 (IEC 60529)
General
Power DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption Max. 5.5 W
Power Interface Ø5.5 mm coaxial power plug
Dimensions 198 mm × 71 mm × 71 mm (7.8" × 2.8" × 2.8") (L × W × H)
Weight 0.42 kg (0.93 lb)
Working Environment -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection 4 KV
Reset Button Support
Material Metal
Web Client Language 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
